Helix tile leveling kit | 3 mm | 75 pcs

For rectified wall tiles and ceramic floor tiles in dry indoor areas, 1 to 2 mm is often chosen to achieve a clean, modern joint appearance.

In living spaces, bathrooms and kitchens, both wall and floor, 2 to 3 mm is the most universal choice, as it provides sufficient tolerance for size variations, substrate movement and moisture exposure.

For natural stone, large-format tiles, underfloor heating, high-traffic areas and outdoor applications, 3 to 5 mm clips are recommended to properly accommodate expansion, contraction and load stress.

Step 1: Determine the size of your tile (length × width in cm).

Step 2: Locate this size in the table on the left: the X-axis represents one side of the tile and the Y-axis the other side. At the intersection of both measurements, you will find the number of clips per m².

Step 3: Multiply this value by the total number of square metres you will be tiling. The result is the total number of clips required.

Tip: It is recommended to add an extra 5–10% as a safety margin for cutting waste and spares.

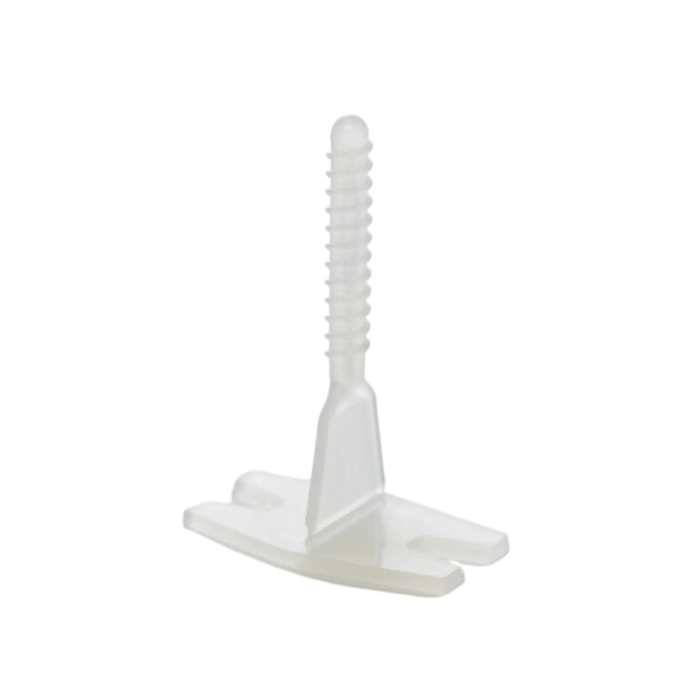

Step 1: Slide the clip(s) under the tile and tap the tile. Place the next tile after you have applied the clips.

Step 2: Using your hand, screw the helix cap onto the clip that was slid under the tile and tighten it all the way to level the tile.

Step 3: Leave the cap on for 24 hours after fixing and once the tile adhesive has hardened, the clip and cap can be easily removed with a rubber mallet or your foot. TIP: Always break in the direction of the joint)

Step 4: Unscrew the cap from the spacer clips, they can be reused.
